Rackmount and Standalone RS232 Modem Splitters

    These RS-232 Modem Splitters are designed to permit multiple terminals to share a single modem. These passive devices are non-powered and transparent to data formats and speeds. The data from the modem is transmitted to all terminal devices. Only one terminal device may send data to the modem at a time. The Master Port is intended to be connected to a modem (DCE). All other ports are to be connected to terminals (DTE).

•  Standalone modem splitters come in DB9, DB25 or RJ45 connectors
•  Rackmount modem splitter(RJ45 Only) holds up to 16 cards; cards install quickly and easily
•  Share up to 7 DTE devices with one modem or DCE device
•  RJ45 Splitters are great for sharing Cisco command ports between multiple Terminal sessions
•  Available under GSA Multiple Award Schedule contract GS-35F-0912R

Part #'s	Description	User Manual

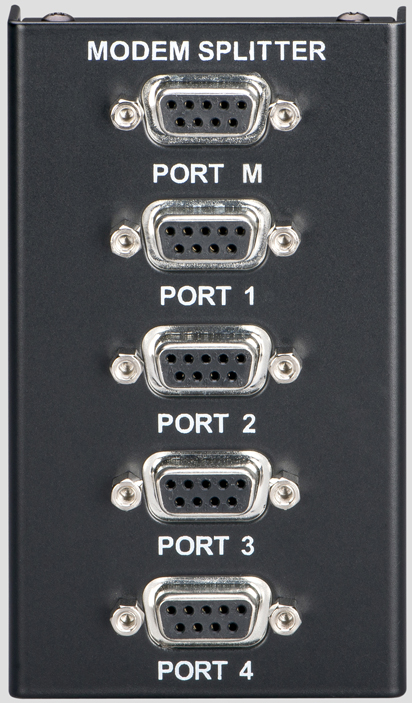

5000848	4 port DB9 Modem Splitter(Standalone)
5000835	4 port DB25 Modem Splitter(Standalone)
5000833	4 Port RJ45 Modem Splitter(Standalone)
5001140	2U Rackmount Modem Splitter Chassis(no cards installed)
5000833-RK	4 port RJ45 Modem Splitter card
5000839-RK	5 port RJ45 Modem Splitter card
5001141-RK	6 port RJ45 Modem Splitter card
5001142-RK	7 port RJ45 Modem Splitter card

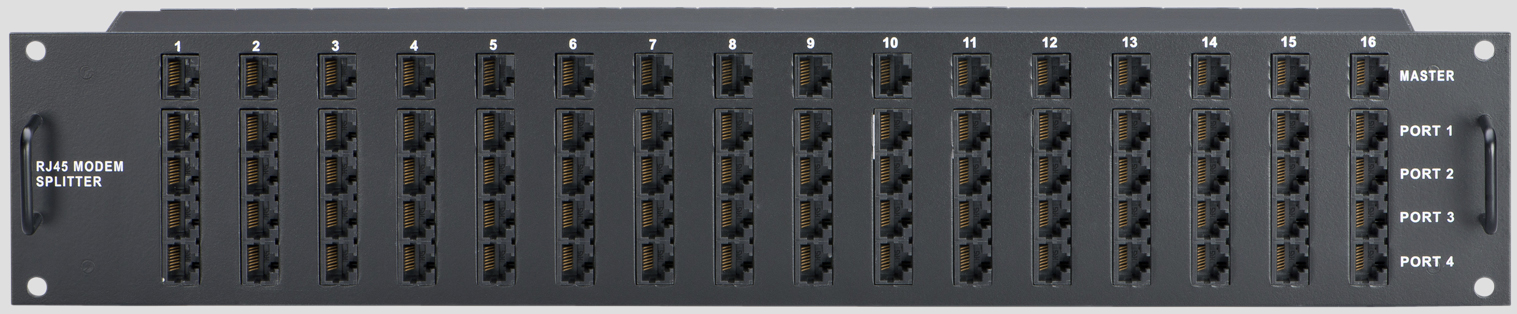

5000834	2U Rackmount Modem Splitter Chassis W/(16) 4 port RJ45 cards installed
5000839	2U Rackmount Modem Splitter Chassis W/(16) 5 port RJ45 cards installed

Note: change part # from 5xxxxxx to 6xxxxxx for lead-free ROHS version

---
